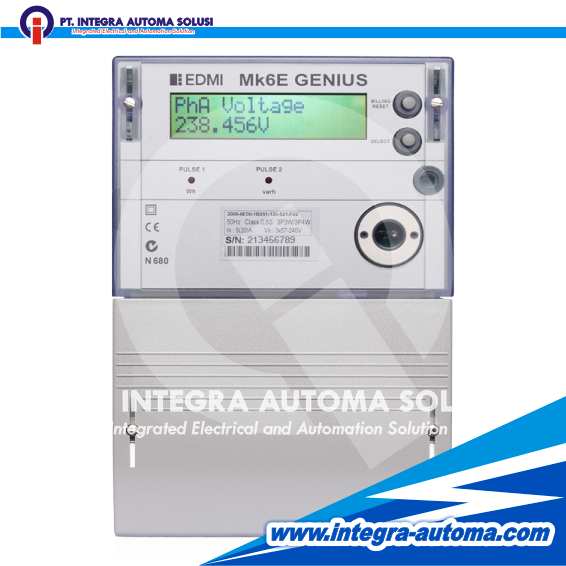

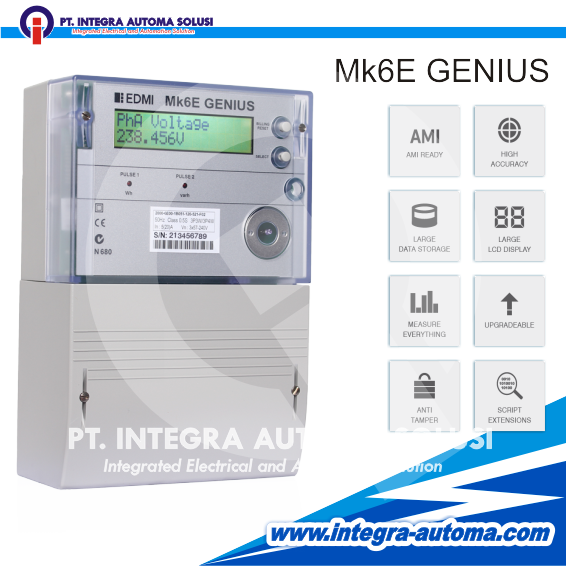

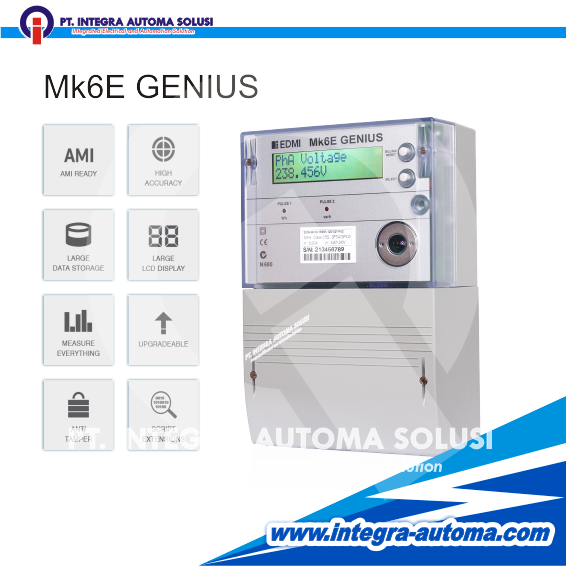

KWH METER EDMI Mk6E
The Mk6E is an enhanced upgrade of the Mk6 meter, built with a higher class accuracy of 0.2S, catering to the high-end markets. The Mk6E is a high-precision meter created for generation and transmission applications, as well as for revenue metering at high-end consumer facilities.
Advanced Three Phase Electronic Revenue Meter
The
Mk6E is an enhanced upgrade of the Mk6 meter, built with a higher class
accuracy of 0.2S, catering to the high-end markets. The Mk6E is a
high-precision meter created for generation and transmission
applications, as well as for revenue metering at high-end consumer
facilities.

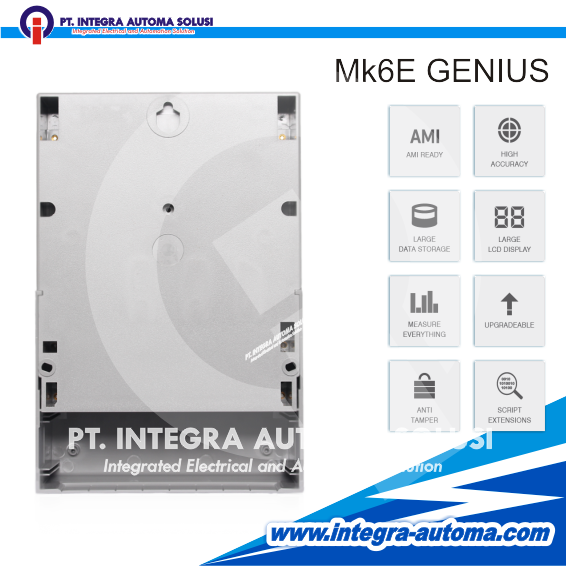

- AMI Ready
- High Accuracy
- Large Data Storage
- Large LCD Display
- Upgradeable
- Anti Tamper
- Script Extensions
Accuracy
• Class 0.2S / 0.5S (IEC 62053-22, IEC 62052-11)
Voltage
• Nominal - 57 to 240V (phase to neutral)
• Burden -
• Frequency 45-65 Hz
Current
• CT Range - 1/4A and 5/20A
• Short time over-current - 20 times the Imax for 0.5 seconds
• Burden - <0.5VA/phase
Auxiliary Supply Options
• 240V, 110V (other voltages available on special order)
Measurement Modes
• 3 phase 3 wire (2 element)
• 3 phase 4 wire (3 element)
Measured Energy Values
• Import/Export Wh, varh and VAh
• Absolute Wh, varh and VAh
• 4 quadrant Wh, varh and VAh
• Phase A, B, C or Total
